Focus On
J-Print SP is an advanced series of single-pass printers developed from years of R&D in digital printing, integrated with the acquisition of Jetset, a company with extensive experience in customizing digital machines, and strengthened by Cefla's significant and long-standing expertise in designing and manufacturing machines and systems of all sizes for painting and decorating various materials, including wood and its derivatives, plastic, and fiber cement.
Description

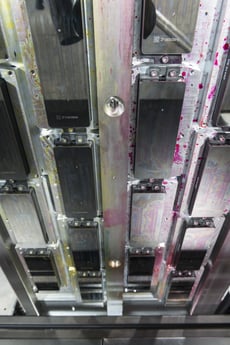

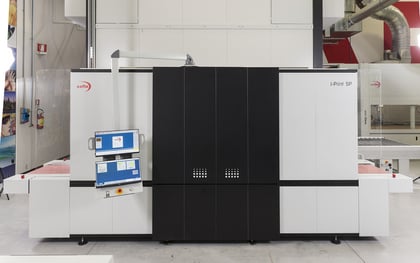

J-PRINT SP is an advanced series of single-pass printers, equipped with industrial print heads, capable of feeding UV-curable inks, and designed for integration into completely digital and hybrid single-pass printing environments. The modular printing bars can be configured to handle effectively unlimited print widths. J-PRINT SP's advanced technology allows it to run at speeds up to 50 linear metres per minute and more.
J-PRINT SP can be configured from 4 standard positions up to a maximum of 8 positions. Its graphics software enables it to print high definition multi-colour images with its high quality print heads.
J-PRINT SP is equipped with its own UV-LED pinning/drying station.

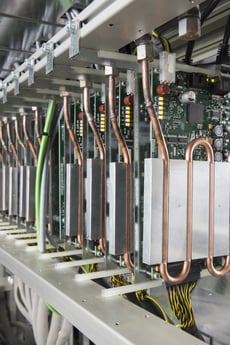

J-PRINT SP employs a system which circulates the ink through the print heads, thus reducing the frequency of cleaning cycles. The specially designed ink reservoirs, continuous agitation system and automatic control of all critical parameters including temperature, flow and circuit pressure, assure optimal ink management.
J-PRINT SP implements the market leading gray-scale DOD (Drop on Demand) technology as standard supply.
Characteristics
- Perfect for high-quality, high-throughput industrial printing
- Handles both rigid and flexible substrates
- Standard widths from 250 mm to 1800 mm
- Ideal for UV inks, compatible with water-based, solvent and ceramic inks
- Adapted for a variety of substrates, including wood derivates, plastic, fibre cement, metal
- Vacuum belt conveyor for secure substrate handling
Details
Materials
Applications
Bedrooms
Coils
Concrete slabs
External wall covering
Extruded parts
Flat doors
Flat panels
Indoor furniture
Interior coverings
Interior lining and home furnishing
Internal matchboard
Kids bedroom furniture
Metal sheets and panels
Noise barriers
Outdoor furniture
Packaging
Panel edges
Panels
Parquet
Porcelain stoneware
Pre-painted sheet
Sidings
Suspended ceilings
Thermal-acoustic insulation in wood-cement
Veneer
Wall coverings
Exhibition booths
Camping cars / RV Industry components
Sheets
Food packaging
Decorative surface material
MDF, chipboard panels and laminates
Partitions
Flooring
Flooring and coverings
Exterior matchboard cladding
Doors
Doors and Garage doors
Metal profiles
Extruded profiles
