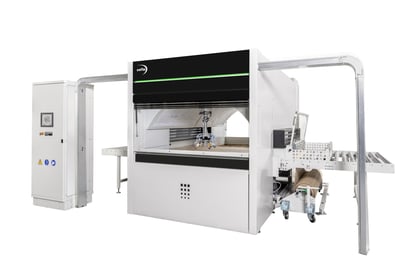

Prima EVO

Machine Type:

Spray coating

One or two-arm oscillating spray coater. Perfect for upgrading from manual to automatic spray coating.

01 Focus On
02 Description
03 Characteristics
04 Materials
05 Applications

Order spare parts

Focus On

Prima EVO can be used as a stand-alone solution without needing to install complex systems, and managed by one or two operators for the loading/unloading of work pieces. It can also easily be integrated into full lines providing increased productivity.

Description

One or two-arm oscillating spray coater, ideal for companies seeking cost-effectiveness, excellent flexibility and productivity. User-friendly and reliable with low operating cost and initial investment. Perfect for fast colour changes and small production batches.

Characteristics

Extreme user-friendliness
Perfect for businesses upgrading from manual to automatic spraying
Low costs
Fast maintenance

Details

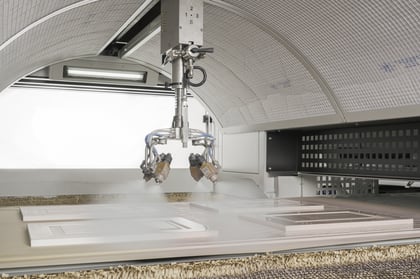

01 Spraying arms

The new-concept central spraying arm gives excellent application performances combined with paint saving. Particularly easy manual spray gun opening access to simplify maintenance. Prima is also ideal for glass finishing. In this configuration, the machine is equipped with a special spraying arm and the most flexible system for spraying on glass, since it is able to apply any type of paint. Prima EVO can be equipped with one central single arm with up to 4 guns, or with two arms with up to 8 guns.

02 Overspray filtration

Suction is through two-stage dry filters, an economical, efficient system. The large filtering surface area guarantees better air distribution, which translates into uniform finishing and a cleaner machine.

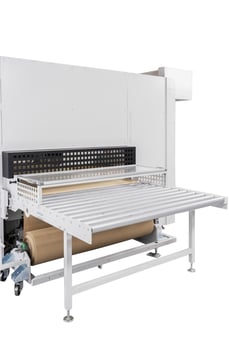

03 Conveyor system

The paper conveyor system, with automatic pay-off and take-up system, features a vacuum unit which provides all the benefits of a continuous conveyor: immaculate panel underside cleaning and uniform application on edges and face of workpieces. Paper rollers are located at the entry and exit points to aid fast changing.

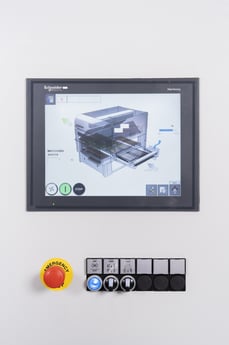

04 Control panel

Electric control panel with PLC and machine control software, managed by a wide, colour touchscreen control panel.

05 Configurations

SPRAYING ARMS AVAILABILITY: 1 arm for paint application; 2 arms for paint application, 1 arm for application to glass; 1 arm for glue application.
