Description

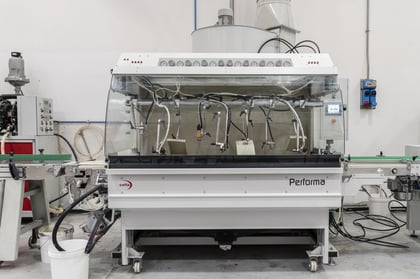

Performa is an automatic linear spray machine designed for coating small-sized components and profiles. Thanks to its multiple spray gun configuration and the different conveyor solutions available, it ensures uniform and controlled application of water- or solvent-based coatings. The machine is designed to provide production flexibility, consistent quality and efficient coating management, and can be easily integrated into automatic finishing lines.
Features
Details
- Performa Roller: roller conveyor system; working width 300 mm
- Performa Belt: conveyor belt system; working width 240 mm or 400 mm
- Performa UV Belt: for application of 100% acrylic products; conveyor belt system; working width 240 mm; patented recovery system

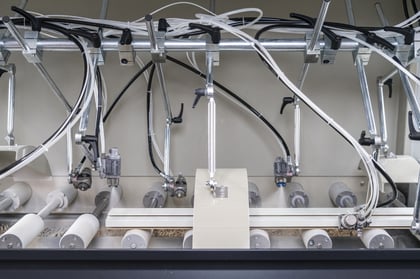

This Performa Roller configuration features an entry and exit conveyor belt system and a system of rollers which feed workpieces through the spraying zone. It is equipped with 8 spray guns subdivided into 2 product circuits and a dry filtration system. It has a working width of 300 mm and is perfect for applying water and solvent-based stains and paints.
Performa Belt has a continuous conveyor belt system for transporting workpieces and a paint recovery system. It is equipped with 8 spray guns subdivided into 2 product circuits and dry filtration. It has a working width of 240 mm and is also available in the 400 mm version. Perfect for applying water and solvent-based stains and paints.
This configuration is the ideal solution for applying 100% acrylic products. It is equipped with a continuous conveyor belt system, steel filters and a patented paint recovery system. Equipped with 6 spray guns on a single product circuit. It has a working width of 240 mm.
Materials
Applications
Construction beams
Extruded parts
Frames for paintings/furniture
Furniture components
Internal matchboard
Kids bedroom furniture
Parquet
Profiles and door profiles
Profiles and structural metalwork
Sidings
Stairs
Tubes
Windows
Beds / slatted frames
Exterior matchboard cladding
Extruded profiles
